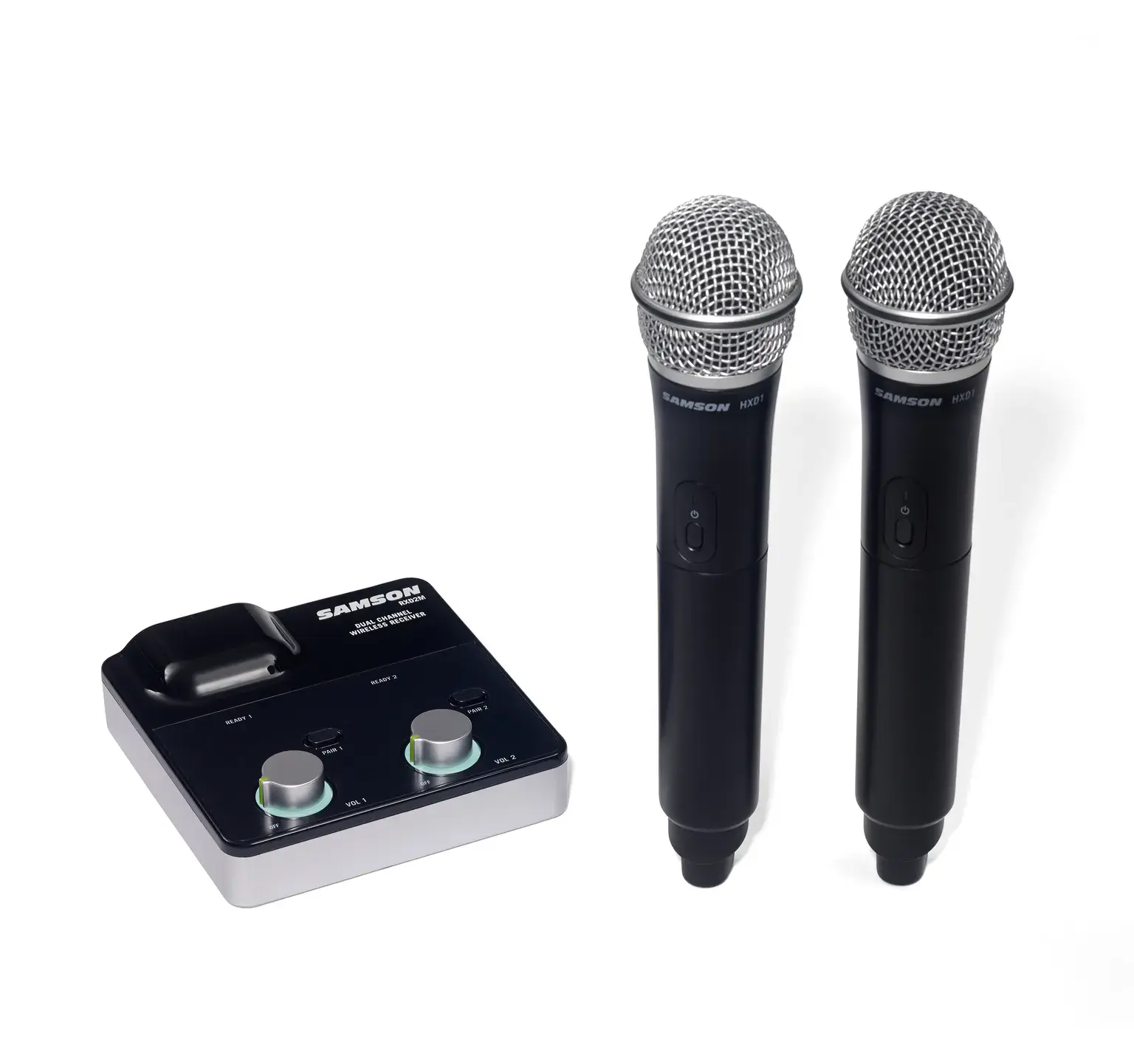

Samson XPD2m 2.4GHz Dual Channel Wireless Tabletop Receiver System
The XPD2m handheld two-channel digital wireless system delivers two channels of high-quality, uncompressed wireless audio ideal for group presentations, educators, Q&A sessions and more. Operating on the license-free 2.4 GHz frequency band, the XPD2m offers easy setup and rock-solid wireless operation in a portable package.

Highlights:
Digital Wireless
The XPD2m Digital Wireless System delivers high-quality audio using digital transmission at 2.4 GHz, with results that sound as good as a traditional wired microphone. Set up is extremely easy and you can start performing with one-touch pairing that syncs the transmitter and receiver channel. Simply connect the RXD2M to your mixer or sound system, set the levels and enjoy wireless audio that sounds as good as a wired microphone.

Double Time
The HXD1 handheld transmitter provides completely wireless performance and captures vocals with absolute clarity. With 20 hours of continuous use from two AA batteries and 100' of wireless operation, the HXD1 delivers reliable performance in any application. A Q6 dynamic microphone element delivers high-quality sound for singers or presenters.

Easy Integration
The RXD2m two-channel desktop receiver easily connects to any audio system. Two balanced XLR outputs allow each wireless channel to be routed independently, or send a mix of both channels via the 1/4" and 1/8" mix outputs.

Samson XPD2m 2.4GHz Dual Channel Wireless Tabletop Receiver System

SKU: 809164226383
$199.99Price
Quantity

  • XPD2m Handheld System

    • High performance dual channel digital wireless system
    • Operates on 2.4GHz License-free frequency
    • 100’ (30m) line-of-sight operating range

    HXD1 Handheld Transmitters

    • Q6 Dynamic Microphone capsule
    • Offers up to 20 hours of battery life using two AA batteries

    RXD2M Tabletop Receiver

    • Dual balanced XLR outputs for routing signals to two separate mixer channels
    • 1/4" and 1/8" unbalanced mix outputs combine signals to one output channel
    • Simple one-touch pairing button
    • Separate Volume controls for each channel

  • System

    Operating Range 100’ (30m) line of sight
    Audio Frequency Response  24Hz - 18kHz (+0/-3dB)
    T.H.D.+N (Overall)  <0.1%, +4dBu, 22kHz BW
    Dynamic Range XLR  81.9 dB re - 1.1 dBu
    Dynamic Range Unbalanced  81.3 dB re +5.3 dBu
    Modulation Type  GFSK
    Oscillation Type PLL
    Signal to Noise 90dB,re +4dBu, 22kHz BW
    Operating Frequency  2.404~2.476+GHz
    Frequency Stability +/- 0.005%
    Max channels per system  2
    Max simultaneous systems 1

    HXD1 Transmitter

    Microphone Element Q6 Dynamic
    RF Power <10 mW EIRP
    Power Requirements Two AA (LR6) alkaline batteries
    Battery Life 20 hours
    Audio Sample Rate 32 kHz
    Dimensions 10.2” x ø2.1” / 260 mm x ø54 mm
    Weight 0.5 lb / 218 g

    RXD1M Tabletop Receiver

    Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) +4 dBu, 1 kHz, <0.6% THD+N
    Audio Output Level XLR jack (balanced) +4 dBu, 1 kHz, <0.6% THD+N
    Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced)  110 ohms @ 1kHz
    Audio Output Impedance XLR output jack (balanced) 2.4Kohms @ 1kHz
    RF Sensitivity -78dBm/20dB SINAD
    Image Rejection >50dB
    Operating Voltage 5VDC 500mA
    Dimensions 4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm
    Weight  0.33lb / 152g
